X99 Motherboard D4 TPM2.0 LGA
X99 Motherboard D4 TPM2.0 LGA
Regular price
£46.46 GBP
Regular price
£77.43 GBP
Sale price
£46.46 GBP
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Motherboard+cooler adapter+SATA cable
Feature:
- Support REG ECC server memory/desktop memory Note that server memory and desktop memory. The two types of memory cannot be mixed together.
- Support M.2 NVME/NGFF SSD.
- High compatibility for a higher experience.

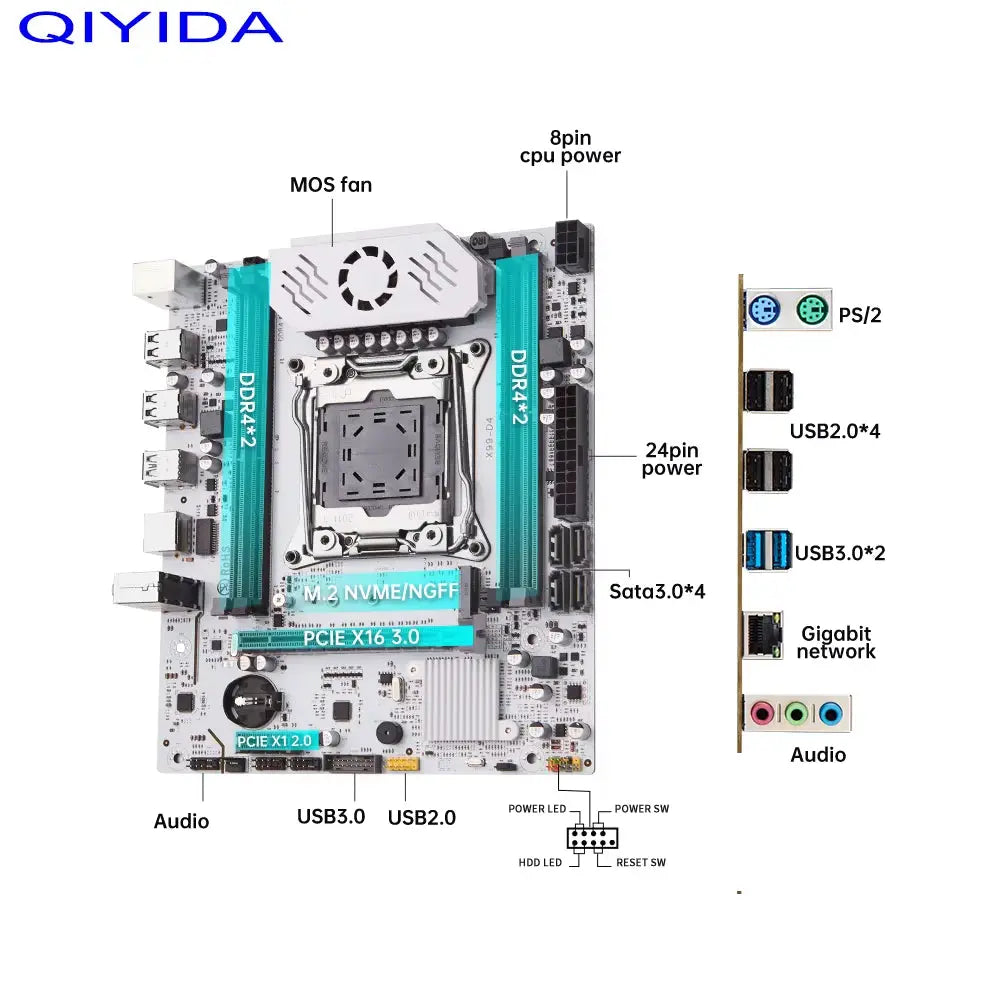

- The power socket has an 8-pin, 24-pin power connector.
- Motherboard dimension: 215mm*190mm.

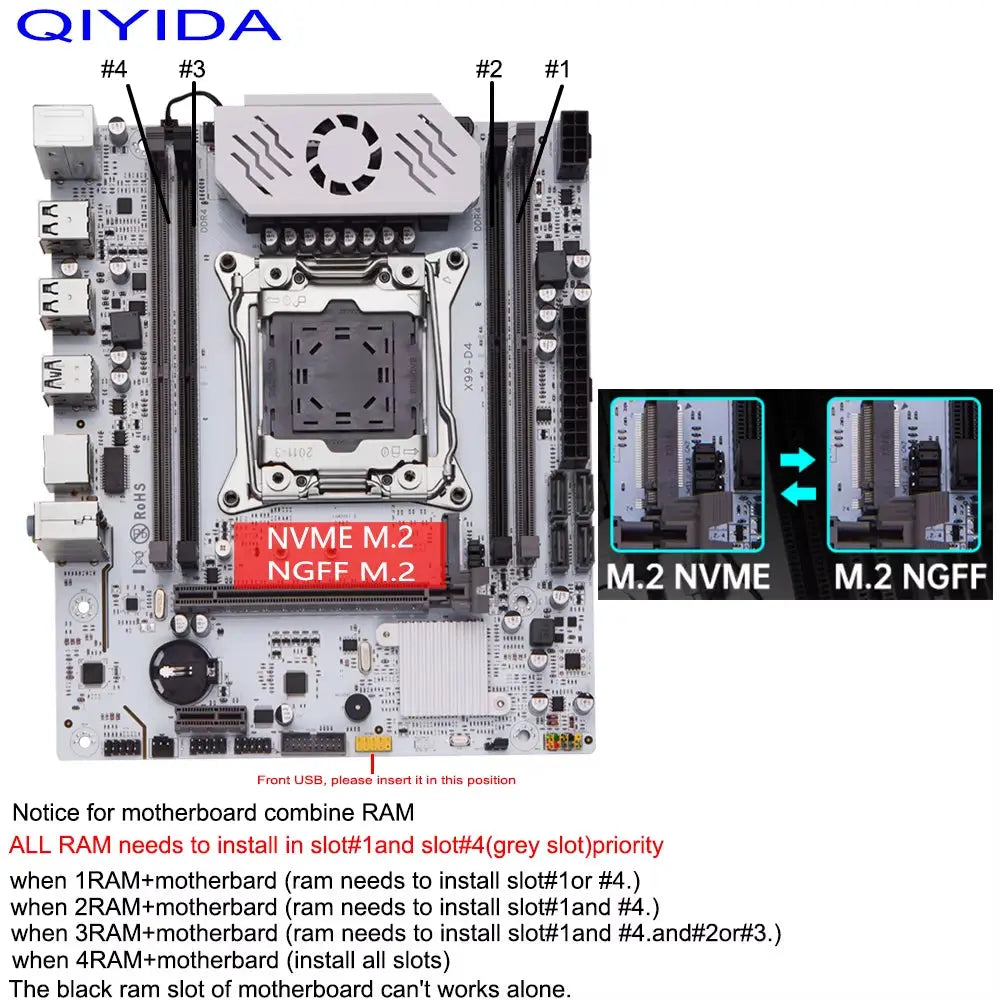

Motherboard combine RAM
ALL RAM needs to install in slot#1and slot#4(grey slot)priority
when 1RAM+motherbard (ram needs to install slot#1or #4.)
when 2RAM+motherbard (ram needs to install slot#1and #4.)
when 3RAM+motherbard (ram needs to install slot#1and #4.and#2or#3.)
when 4RAM+motherbard (install all slots)
The black ram slot of motherboard can't works alone.
Specification:
Main chipset: C612/Q87/H81/B85etc., random delivery. thank you. If you can't accept it, please don't buy it. Buying means that you agree to the terms.
Model : QIYIDA
Condition: New
CPU socket: LGA 2011-3
CPU supported:for Intel series with LGA 2011-3 socket
(E5 V3,V4 series )
Memory socket: 4* DDR4
Memory Standard ：Support channels DDR4 3200/2666/2400/2133/1866 MHz
Max memory supported: 4*32G DDR4
Memory type supported: non-ecc/reg ecc/ecc(The server ram can't work with the desktop ram, it has the compability problem.)
Integrated video card: No
Motherboard dimension: 215*190mm
Motherboard weight(including package): 0.9kg or so
